ASUS ROG STRIX B650-A GAMING WIFI Review – Approachable

by December 31, 2022
Overview
Highlights

ASUS brings its challenger to the AMD B650 battlefield in the form of ROG STRIX B650-A GAMING WIFI. It comes with a few creature comforts, some trickled-down, some already seen. This is a solid starting point for most builders.

Warranty

3 years

Price

RM1,409

Positives

+ All slots PCIe 4.0 and up
+ Q-Release for GPUs
+ Easy-to-use BIOS
+ PBO Enhancement feature

Negatives

- Third M.2 slots fights bandwidth with bottom PCIe 4.0 x16 (chipset) slot

Pokde Scoreboard
Pokde Rating
Appearance
8.5
Features
8.5
Materials
8.2
Performance
8.2
User Experience
8.5
Value
8.0
Bottom Line

The ASUS ROG STRIX B650-A GAMING WIFI makes for a more user-approachable motherboard to build their systems on.

8.3
Pokde Rating
You have rated this
What's your reaction?
Me Gusta
20%
WOW
60%
Potato
20%
Sad Reacc
0%
Angery
0%

As it stands right now, AMD’s B650 is the ‘entry-ticket’ platform to its latest AM5 processors. It’s technically not entry-level, but as a midrange model – this is where most people’s picks will land on when it comes to building a decent-spec PC. ASUS sent in their ROG STRIX series of the B650 motherboard – which comes in white – for us to check out.

Unboxing

ASUS ROG STRIX B650-A GAMIGN WIFI Review

Box Front

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 23

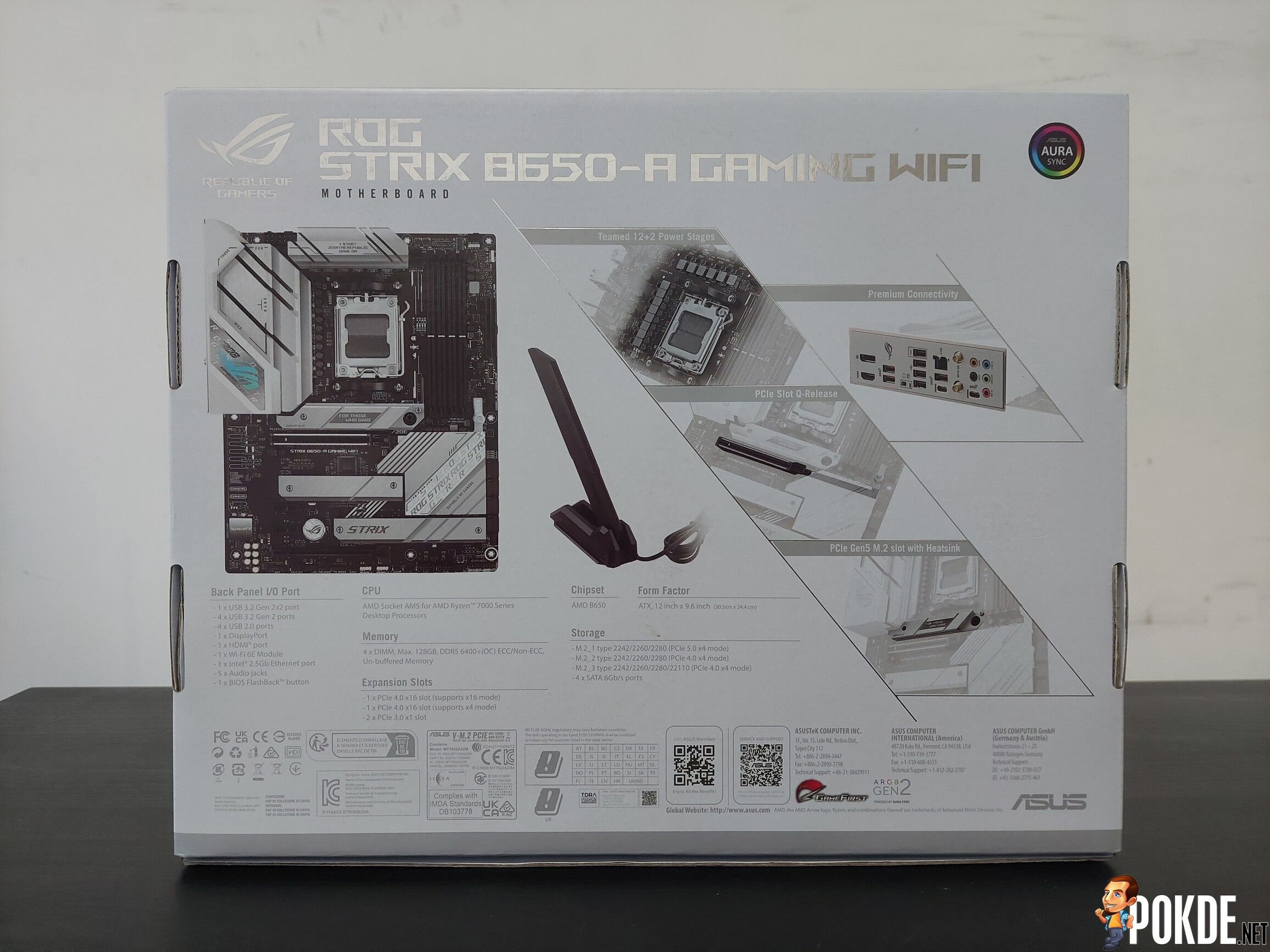

Box rear

For a gaming motherboard, it’s a fairly straightforward box: name and image in the front, features on the back – just your standard packaging ordeal. A white motherboard does mean a white box though – and this can probably be part of your showpiece.

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 24

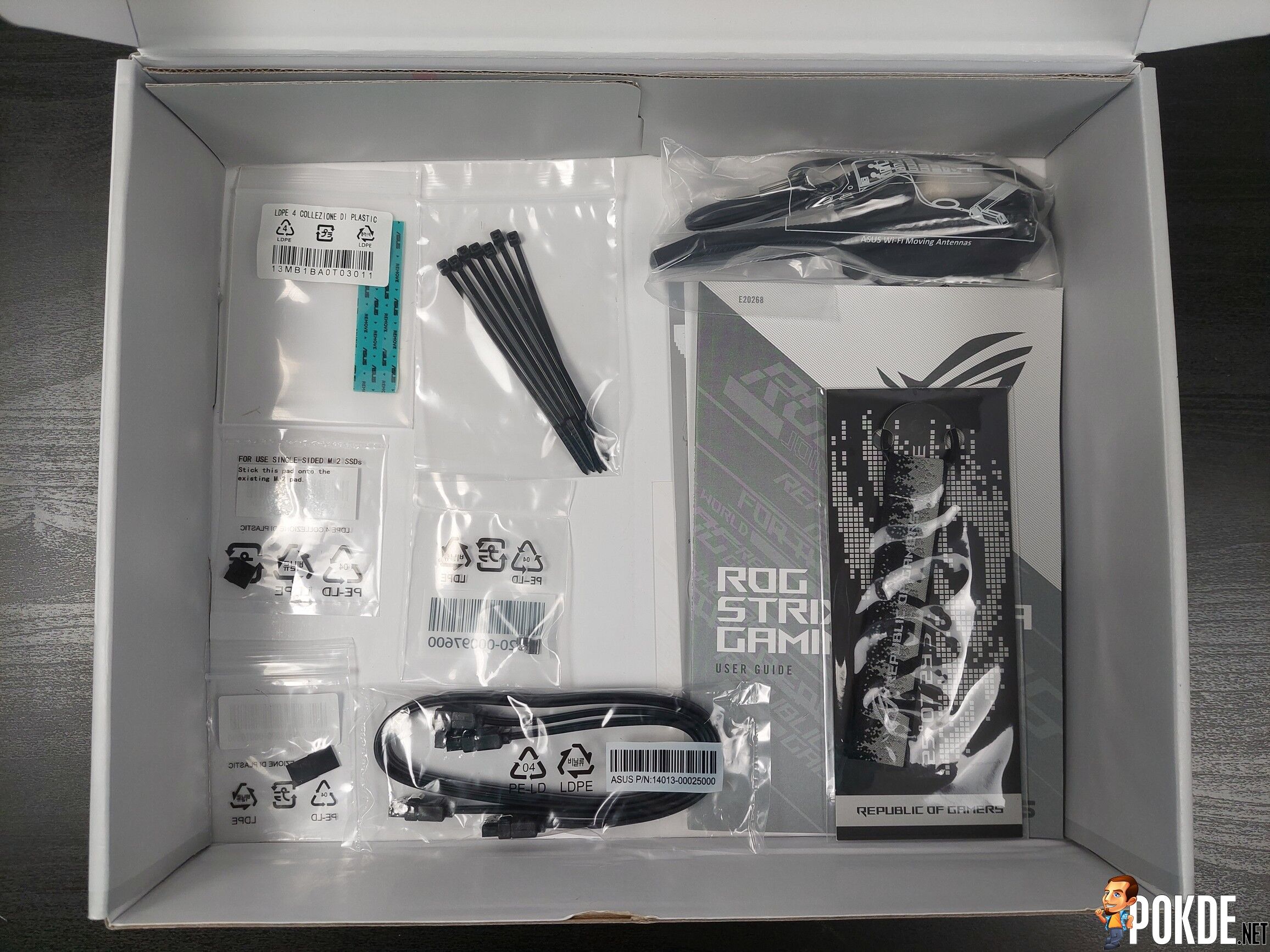

Box contents (Wi-Fi antenna originally placed in a different compartment of the box).

Opening the box reveals the board itself, Wi-Fi antenna (placed separately in an individual compartment), and a few spare parts for later use, namely: SATA cables, M.2 thermal pads, Q-Latch screws, and zip-ties for cable management.

Appearance

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 25

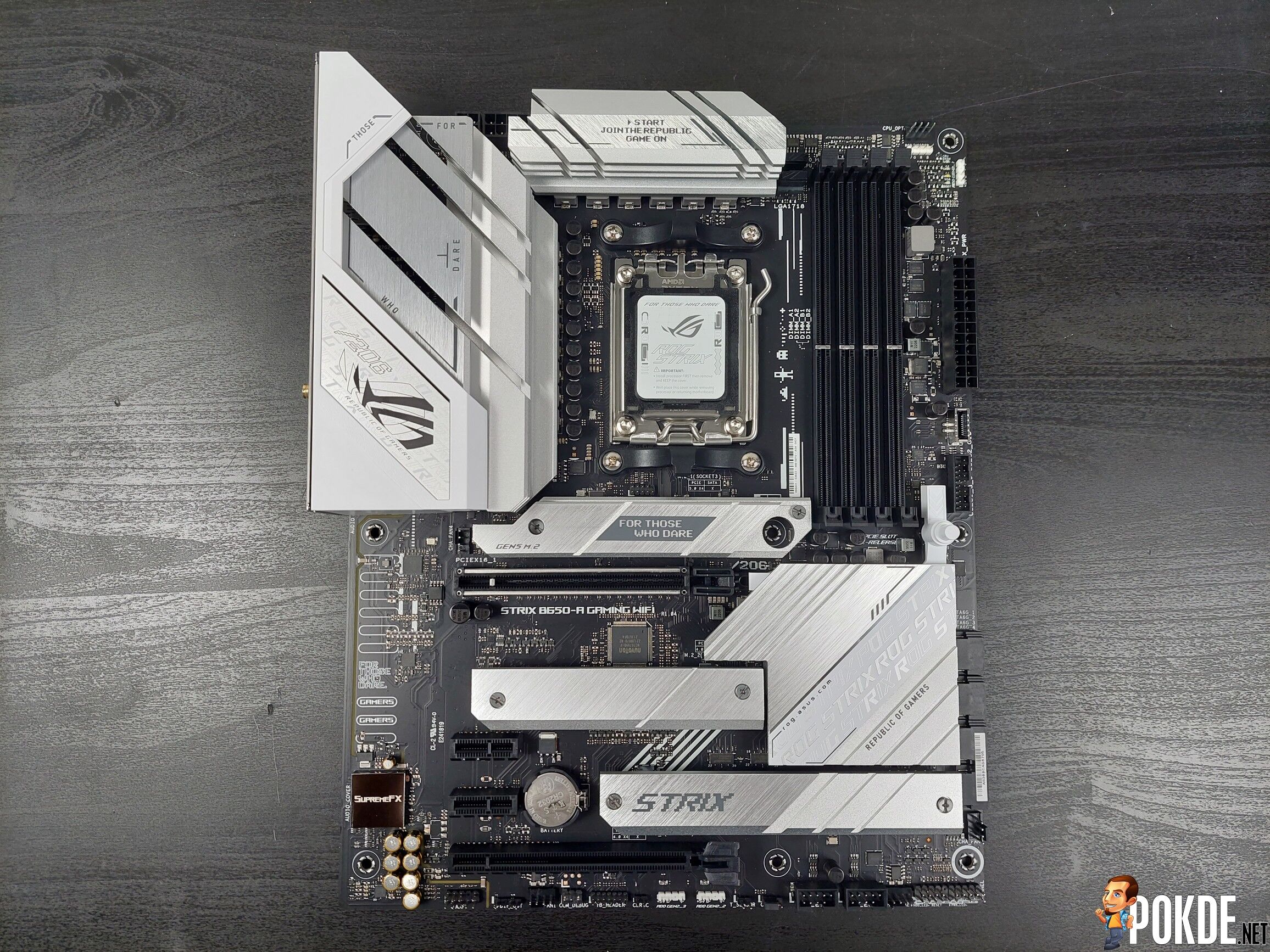

Motherboard front

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 26

Motherboard rear

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 27

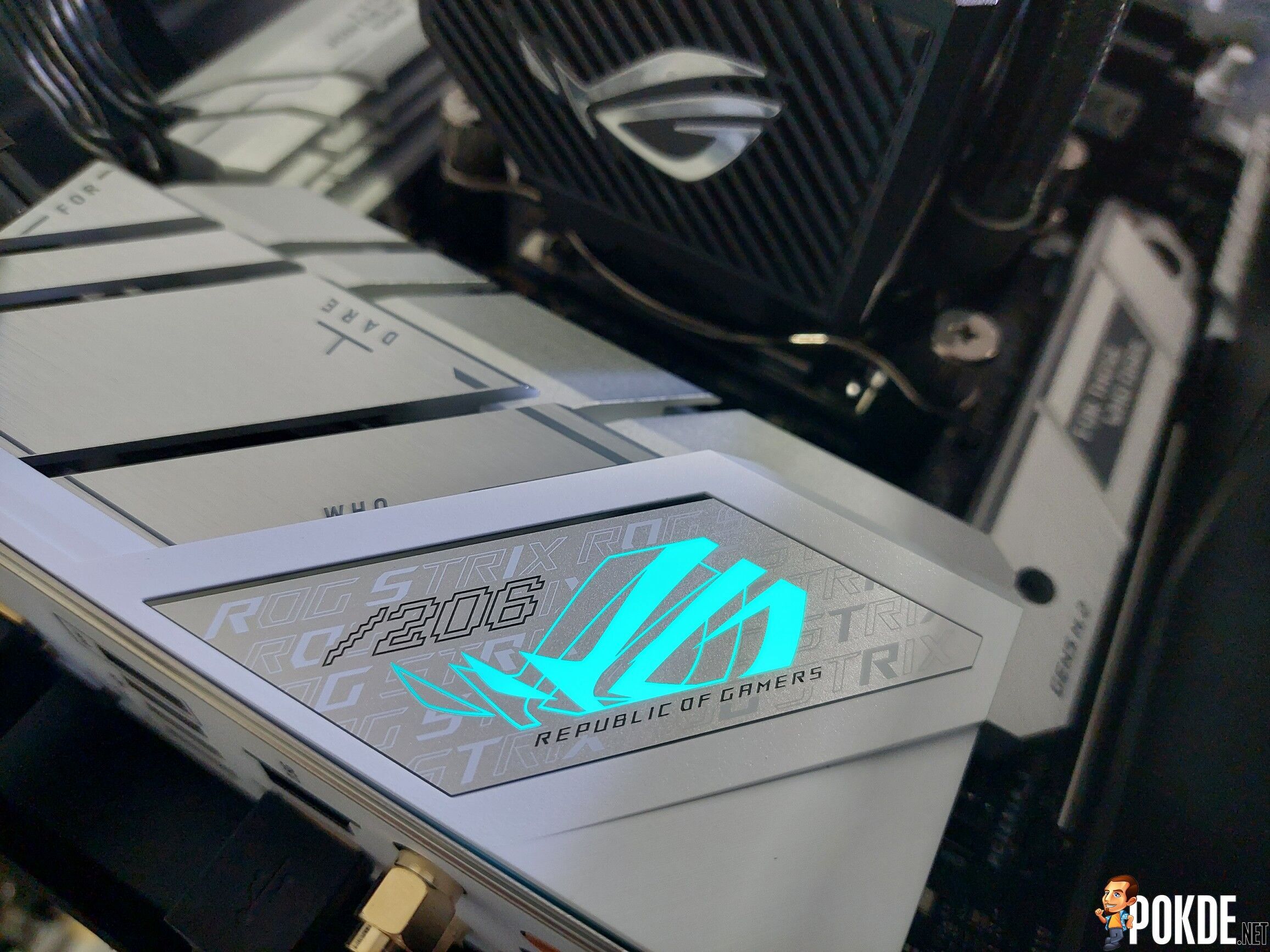

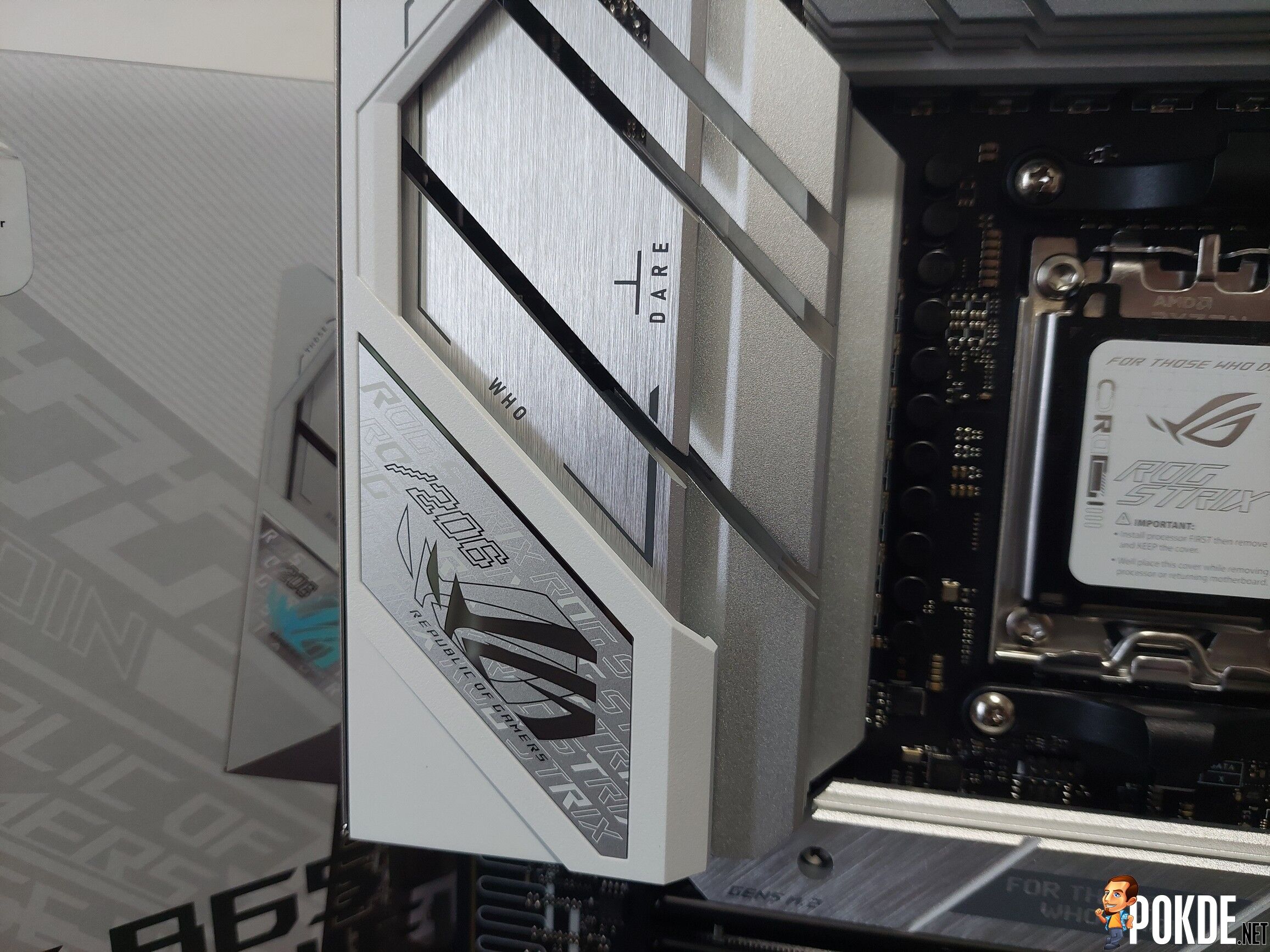

RGB Lighting – this is the only place you’ll see lights on the entire board.

Gone is the more cyberpunk-style design, and in comes the retro-style typefaces across the board (pun intended). In this case most white parts are actually just metal heatsinks – and upon closer look I’d argue it’s more like brushed aluminum look that you usually see in laptops. There’s one exception – parts of the I/O shield is in fact plastic and has trace amounts of RGB lighting available. Due to the way it’s constructed – it’s probably safe to avoid grabbing the I/O shield with too much pressure on it.

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 28

Three separate heatsinks each covering their respective M.2 slots.

You do get three M.2 slots available, each comes with its individual heatsink due to the PCIe slot layout. The bottom one supports longer M.2 22110 form factor on top of the existing sizes (including mainstream 2280 ones). Since there’s no CMOS reset button like the flagship Crosshair model – that will need to be manually done by removing the CMOS battery which is exposed next to the SSD slot.

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 29

I/O ports. Could be tidier…

Interestingly, unlike Crosshair X670E HERO – you get two display outputs available for the onboard GPU. Below them are two USB 3.2 Gen 2 ports, and after that comes a tiny BIOS FlashBack and four USB 2.0 ports. Next row is USB-A and USB-C (both USB 3.2 Gen 2), plus a 2.5GbE LAN port. Then comes Wi-Fi 6E antennas, and finally audio outputs with a lone USB 3.2 Gen2x2 sitting next to them. Not the cleanest arrangement of ports I’ve seen at least…

Specifications

ASUS ROG STRIX B650-A GAMING WIFI

CPU Support Socket AM5 (AMD Ryzen 7000 Series)
Form Factor ATX (12 x 9.6 in / 305 x 244mm)
Chipset AMD B650
Power & VRM 1x EPS 8-pin + 1x EPS 4-pin
12+2 stage (Vcore+SoC), Alpha & Omega AOZ5317NQI (60A per powerstage)
ASUS DIGI+ EPU ASP2208GQW PWM controller
Memory 4-slot Max. 128GB DDR5-5200 unbuffered
Overclocking support up to DDR5-6400+
AMD EXPO support
PCIe Expansion Slots 1x PCIe 4.0 x16 (CPU)
2x PCIe 3.0 x1 slots
1x PCIe 4.0 x16 (Chipset, supports x4 mode – shares bandwidth with third M.2 slot)
Storage 4x SATA 6Gb/s
3x M.2 slots (1x PCIe 5.0 x4 + 2x PCIe 4.0 x4)
*Third slot (M.2_3) shares bandwidth with PCIe 4.0 x16 slot, disabled under PCIe mode
Networking AMD RZ616 Wi-Fi 6E (MediaTek MT7922A22M) (M.2 2230)
Intel 2.5GbE I225-V LAN
USB Rear:
1x USB 3.2 Gen 2×2 (USB-C)
4x USB 3.2 Gen 2 (3x USB-A, 1x USB-C)
4x USB 2.0 (4x USB-A)
Front (headers):
1x USB 3.2 Gen 2×2 header (USB-C)
1x USB 3.2 Gen 1 headers (splitting to 2x USB 3.2 Gen 1)
2x USB 2.0 headers (splitting to 4x USB 2.0)
Other I/O 1x HDMI 2.1 (onboard GPU)
1x DisplayPort 1.4 (onboard GPU)
1x Wi-Fi antenna connector module
1x BIOS FlashBack button
Audio ROG SupremeFX
Realtek ALC4080 codec
Savitech SV3H712 amp
5-channel audio jacks (rear)
1x front panel audio header
Peripheral Headers Fan and Cooling
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
1 x COM_DEBUG header
Accessories Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
Documentation
1 x User guide

Test System

CPU AMD Ryzen 7 7700X
Cooler ASUS ROG Ryujin II 360 AIO
Cooler Master MasterGel Maker
Motherboard ASUS ROG STRIX B650-A GAMING WIFI (BIOS ver. 0823)
GPU NVIDIA GeForce RTX 3080 Ti Founders Edition
Memory Kingston FURY BEAST DDR5-6000 CL36 (2x16GB)
Storage Samsung SSD 980 PRO 256GB (Boot)
Kingston NV1 1TB
Power Supply Cooler Master V850 Platinum 850W
Case VECTOR Bench Case (Open-air chassis)
OS Windows 11 Pro 22H2

A Closer Look

VRMs

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 30

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 31

Left: Alpha & Omega AOZ5317NQI / Right: ASUS DIGI+ EPU ASP2208GQW

This array of 12+2 powerstage is courtesy of Alpha & Omega AOZ5317NQI DrMOS capable of 60 amps – middle-of-the-road spec all things considered. Still, it’s more than capable of covering Ryzen’s increased power draw in this generation. The heatsinks sitting on top of VRMs are still quite sizeable, but given Ryzen’s relatively lower power usage (compared to equivalent Intel chips at least), it’s unlikely for you to run too close to the sun. ASUS chose its own in-house VRM controller, DIGI+ EPU ASP2208GQW, to handle the power delivery.

Audio

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 32

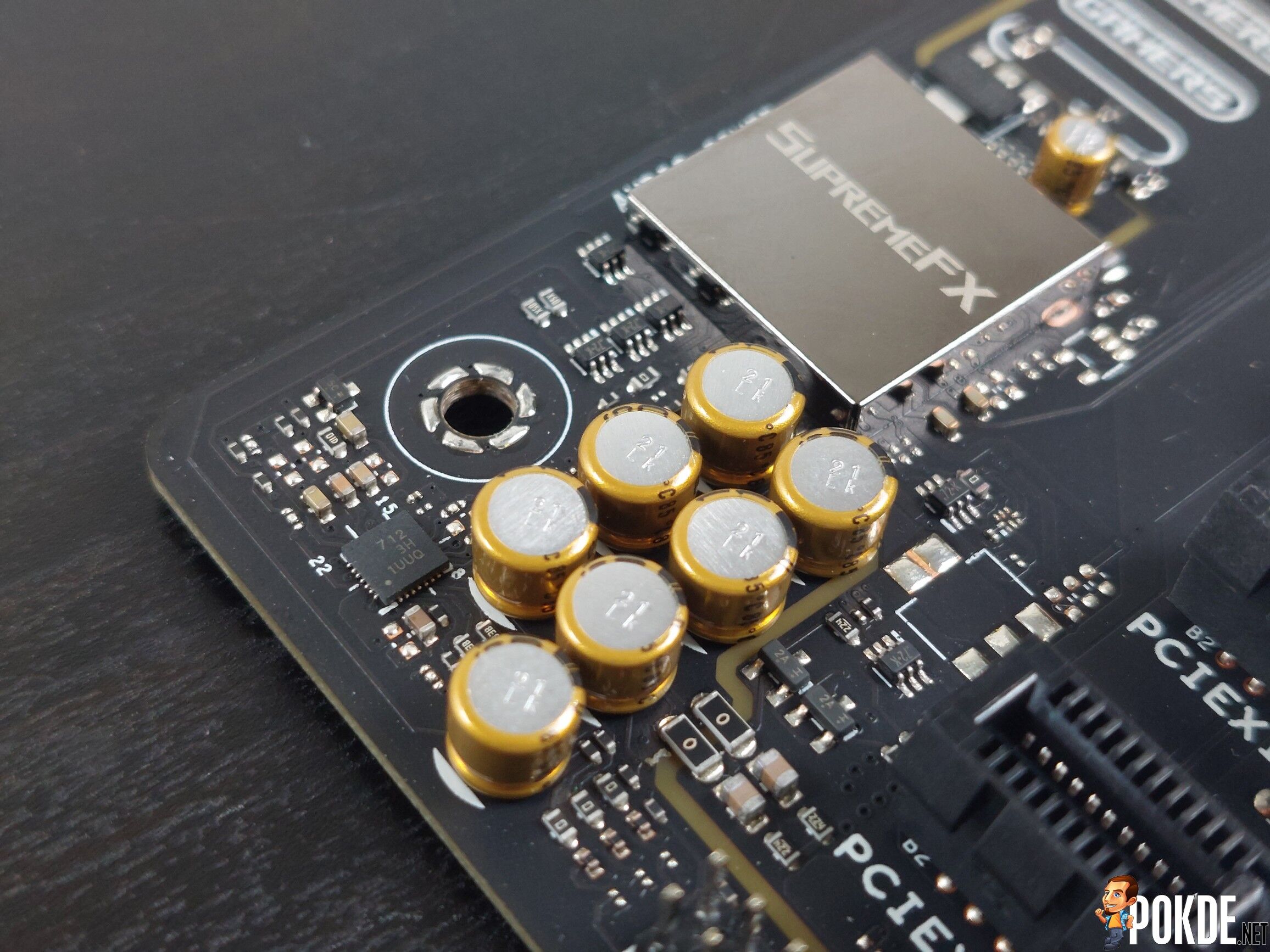

Savitech SV3H712 amplifier at the bottom.

While not necessarily using the highest-end ESS Sabre DACs, the tried-and-tested combination of Realtek ALC4080 codec + Savitech SV3H712 amp which is previously featured on boards like ROG STRIX Z590-F should be a good indication that this is a pretty solid pair for powering high-end or even planar magnetic headphones.

Storage & Expansion

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 33

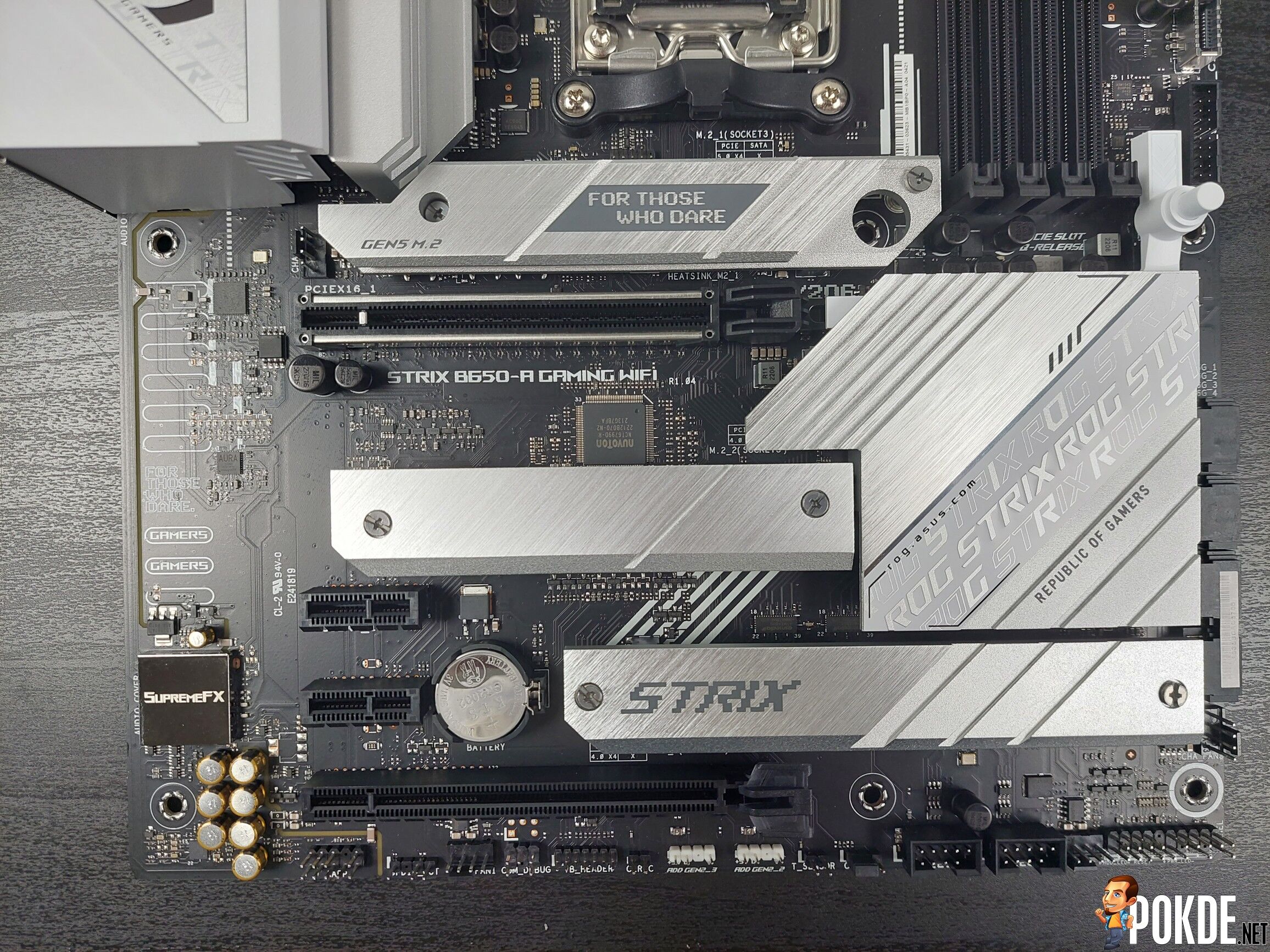

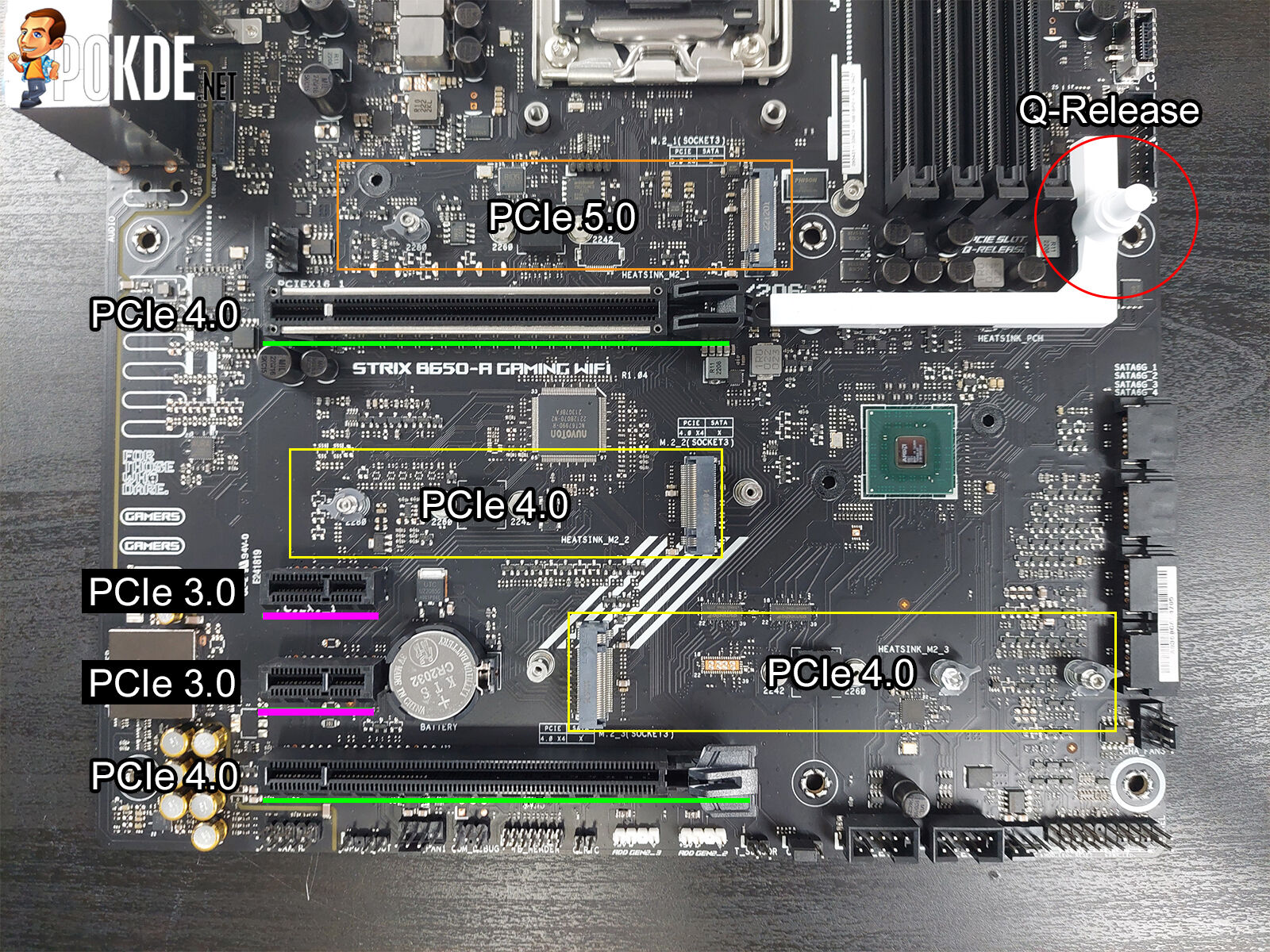

Expansion layout.

The B650-A provides four PCIe slots and three M.2 slots: the topmost enjoys full PCIe 5.0 x4 bandwidth while the middle, second slot is rated for PCIe 4.0 x4 speeds. Same applies to the third one, however there’s a bit of jiggling for that slot in particular. As the slot fights its bandwidth with the bottom PCIe 4.0 x16 slot – the slot may get disabled based on the BIOS settings. It’s not likely you’ll be encountering such situation unless you have a lot of M.2s and a bunch of PCIe expansion cards that requires this slot.

I/O

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 34

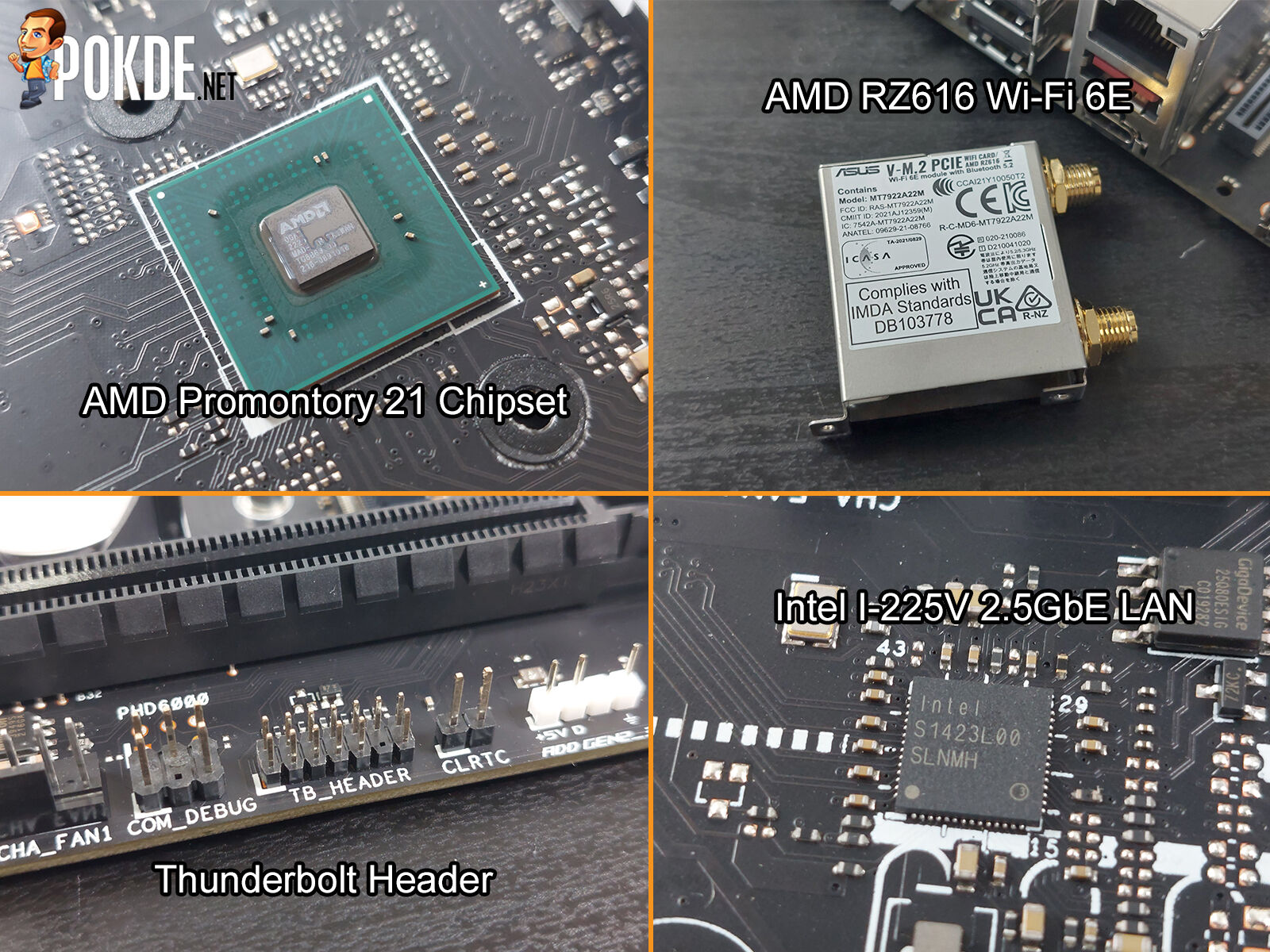

I/O components.

While the flagship Crosshair gets a USB4/Thunderbolt port built-in, it’s absent from the STRIX B650-A – however you do get a Thunderbolt header down the bottom if you need to have all that high-speed peripherals to go somewhere. This being a standard B650 chipset meant just one Promontory 21 FCH chip – you do still get PCIe 5.0 capabilities on the primary M.2 slot. Downstream I/O is handled with various ASMedia and Genesys chips.

LAN is the same Intel I225-V 2.5GbE seen in many motherboards by now; however that’s not the case for the Wi-Fi module. Likely to reduce its hardware reliance on the rival chipmaker – AMD has gotten help from MediaTek to build a custom M.2 Wi-Fi module for AMD-based systems. This AMD RZ616 Wi-Fi 6E module (also called MediaTek MT7922A22M) is based on MediaTek’s designs; however it’s not exactly known if there’s any special sauce courtesy of Team Red.

Thermals

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 35

Cinebench R23 10-minute run – on stock settings.

With the Ryzen 7 7700X pushing all its 105W TDP (effective PPT peak ~142W) available for a 10-minute Cinebench R23 stress test, the temperatures are fairly well managed. With higher-power Ryzen 9 it will get hotter – but there’s enough headroom to consider this as mostly a non-issue.

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 36

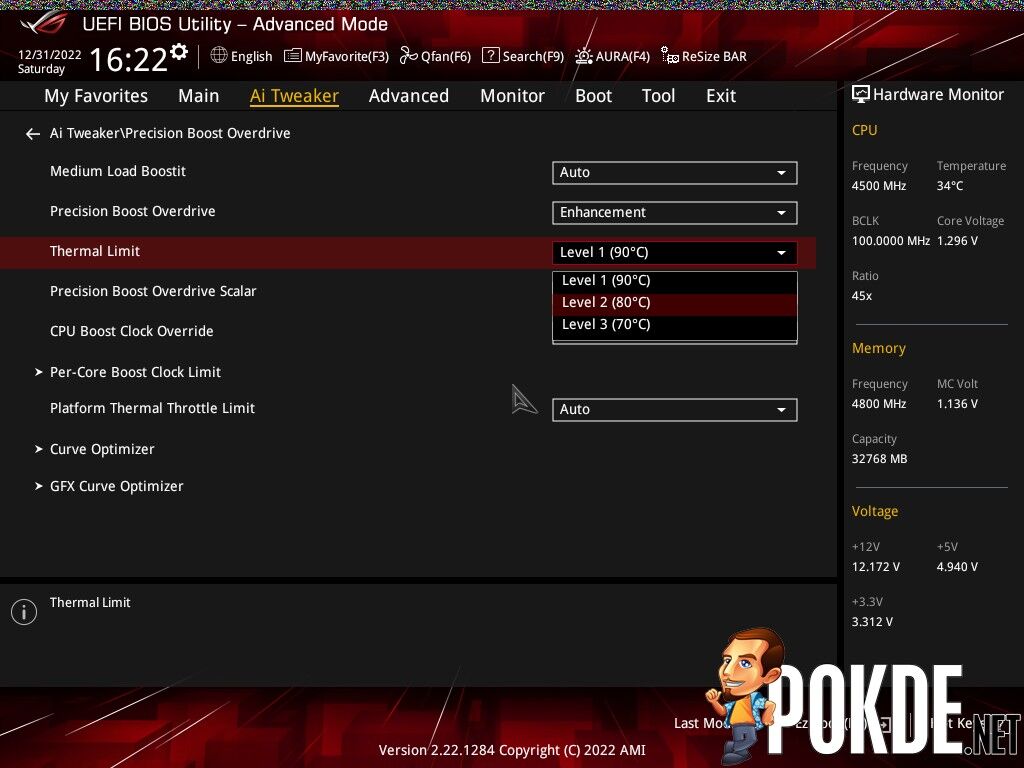

PBO Enhancement feature.

If you want to keep the CPU thermals more reasonable, starting from BIOS version 0809, ASUS has included a PBO feature called PBO Enhancement. Setting it up is very simple – head to BIOS, under PBO Settings select Enhancement, then pick the target temperature you want. Level 1 is usually the best for most users as it improves performance by a small margin while dropping the temperature slightly over stock limits.

Other Features

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 37

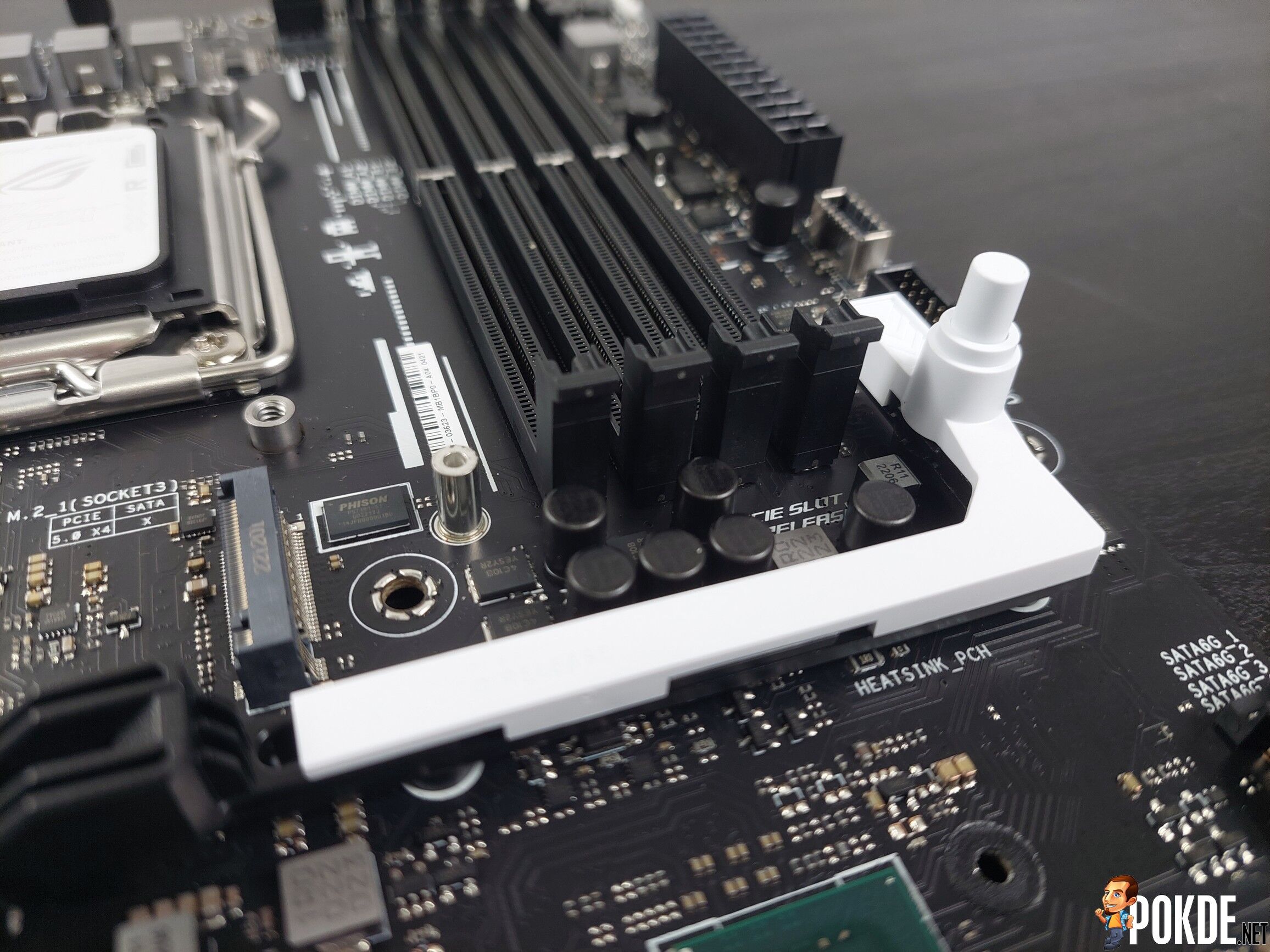

PCIe Q-Release latch

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 38

Status LEDs.

A new feature in ROG’s midrange motherboards is the PCIe Q-Release button – already long-featured in flagship models, this is a very welcomed addition especially as GPU gets increasingly bigger and causing the latch itself increasingly difficult to reach these days. Not all creature comforts gets passed down the line, of course – so in this case you’re still on a traditional four-LED status indicators, and manually shorting front-panel pins is required to fire up the system.

Starting Up

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 39

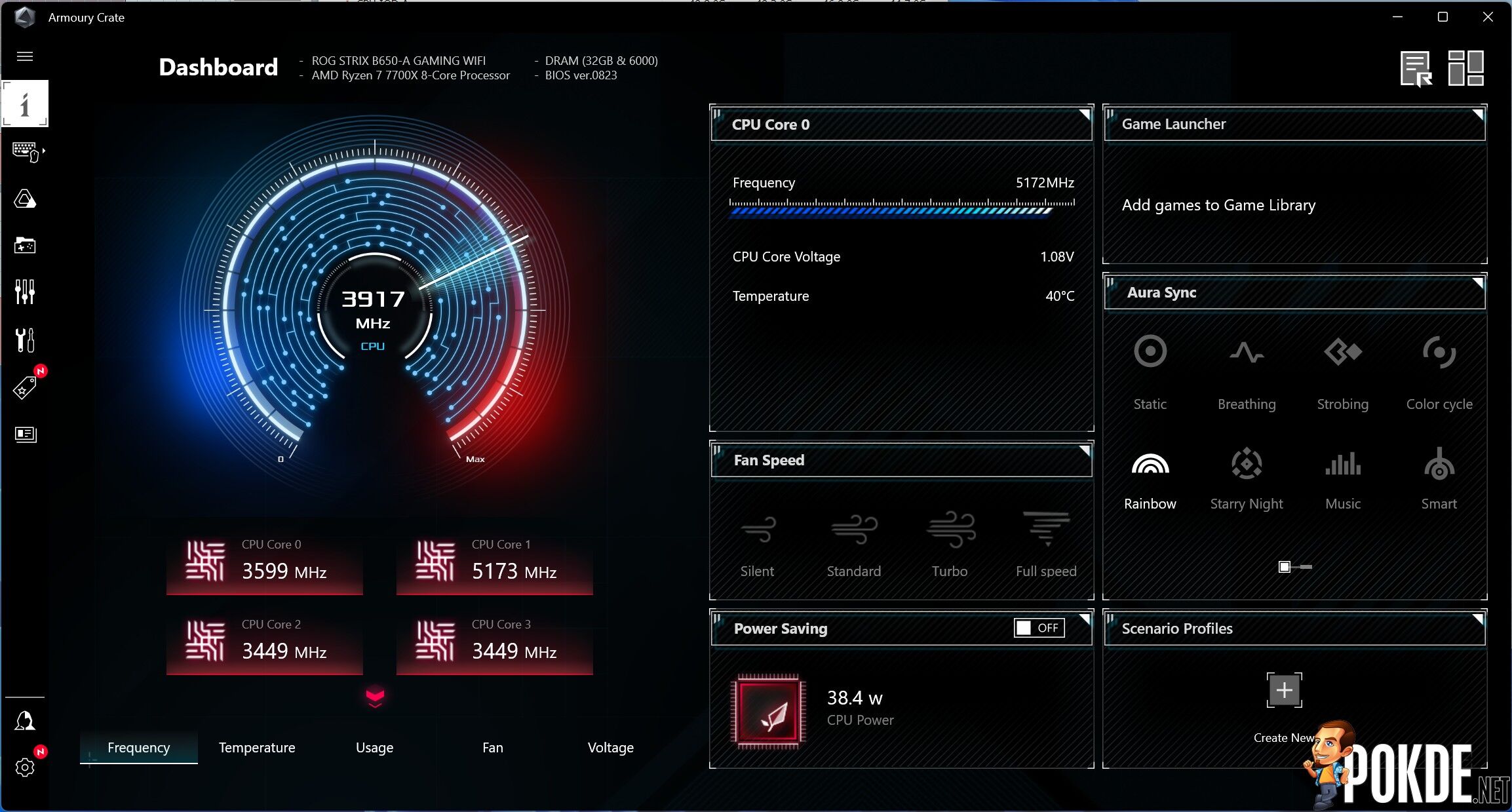

ROG Armoury Crate

Like the Crosshair X670E HERO – not much gets in the way of first boot. You get the EXPO up and it’s off to the races. Starting with BIOS ver. 0805, you get ASUS’s exclusive PBO Enhancement feature which I highly recommend to turn on for better thermals and sometimes better performance as well. ROG Armoury Crate is the app that handles your system vitals, and you always have the option to leave it to AI if you want a one-click thermal/acoustic optimization done for you.

This motherboard also comes with a suite of included software ranging from basic stuffs like MyASUS (you can disable it in BIOS if you don’t need it) to test toolkits such as AIDA64. All are optional – so pick your poison accordingly.

Conclusion

This being an ROG board meant the price sits a bit on the upper end of the spectrum – however at RM1,409 the ASUS ROG STRIX B650-A GAMING WIFI is also not the most pricey B650 seen on the market. With that price, it does get you a bunch of creature comforts that’s still fairly uncommon in the mid-range motherboards, such as the Q-Release PCIe slot – which is a first among ROG’s AMD B-series lineage.

ASUS ROG STRIX B650-A GAMING WIFI Review - Approachable 40

With PCIe 5.0 support brings I/O bandwidth and more flexibility in general – although the bottom PCIe and M.2 slot fighting for the same piece of bandwidth can require some ‘either-or’ changes in settings depending on your parts on hand. That said, all slots now support PCIe 4.0 and up is certainly a plus. Though, you don’t get USB-PD support on USB-C headers, so stick with your current charging brick if you have a phone or laptop that’s needing some top up.

The design is certainly appealing, and generally it won’t be too much of an issue for first-time builders to use this motherboard as their starting point. On top of solid specs, many of the tiny details can be taken care of by-design or through AI features (such as acoustic controls), so if that’s a small cost to pay for convenience, it’s a fairly good deal.

intel core i9 12900k review silver pokdeward

Thanks to ASUS Malaysia for sending us the ROG STRIX B650-A GAMING WIFI for the purpose of this review.
